Engineering 77 Lab 1-Non-linear Devices: Diodes

Aron Dobos, Tyler Strombom

6 September 2005



Abstract

The non-linear device characteristics of the 1N914 and 1N4001 diodes were measured in the laboratory.  The calculated device parameters were compared to the manufacturer’s specifications, and some deviations were observed.  The actual behavior of the two diodes was also compared to the ideal and constant voltage drop diode models.



Task 1 : Measuring the I-V Relationships

The circuit shown in Figure 1 was connected in the lab, first with the 1N914 diode.  The voltage V1 was varied from -10 V to 10 V.  The current flow through the diode was obtained by measuring the precise resistance of R1 and the voltage across it.  The plot of the diode current vs. the diode voltage for the 1N914 and 1n4001 are shown in Figures 2 and 3, respectively.

Figure 1. Task 1 Circuit Schematic

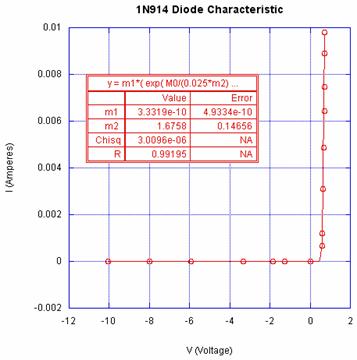

Figure 2. 1N914 Data and Curve Fit

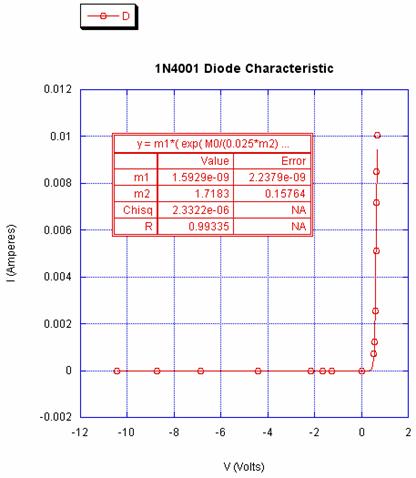

Figure 3. 1N4001 Data and Curve Fit



From the best fit curve, we can obtain the saturation current Is and emission coefficient n parameters.  The results are shown in Table 1.

Table 1. Is and n Values



Experimental

Manufacturer 1

Manufacturer 2



Is

n

Is

n

Is

n

1N914

3.33E-10

1.676

2.22E-10

1.65

xxx

xxx

1N4001

1.59E-09

1.718

7.69E-11

1.45

3.70E-09

1.774



The table evidences some disagreement on the parameter values.  For the 1N914 diode, the experimental and manufacturer values are in fact quite close, and the differences due to aberrations in the manufacturing.  For the 1N4001 however, the experimental data is much closer to the values put forth by manufacturer 2, and those specified by manufacturer 1 are completely different.  One might conclude that there is some reasonably significant variation among diodes that bear the same device name.







Calculating diode for V1 = 2 Volts



There are two separate equations for the current through circuit 1. They are

                                                                                                         Eq. 1

and

                                                                                                              Eq. 2

where Is is the saturation current, Vdiode is the voltage across the diode (also Vout), Vt is the thermal voltage, n is the emission coefficient, V1 is the input voltage, and R is the resistance in the circuit. The two equations can be used to determine Vout/Vdiode by combining the two equations into

                                                                         Eq. 3

Equation 3 can be plotted in Matlab, as shown below:

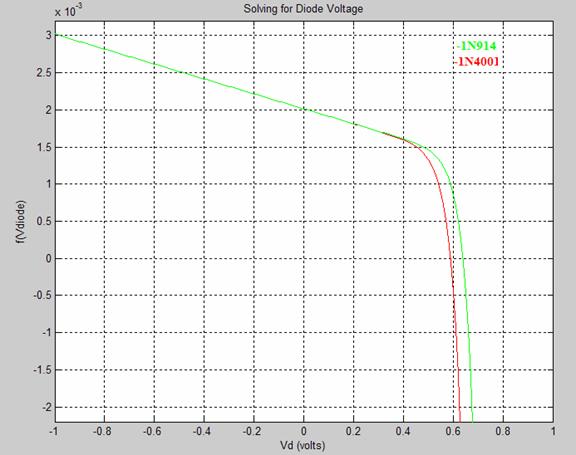

Figure 4: Plot of f(Vdiode)



When f(Vdiode) = 0, equations 1 and 2 are equal. The value for Vdiode at this point is the voltage across the diode when the input voltage is 2 V. Using the Matlab program in Appendix A, f(Vdiode) equals zero at 0.5886 V for the 1N4001 diode and 0.6382 V for the 1N914 diode.



Half-Wave Rectifier



The following circuit was constructed with a 1N914 diode

Figure 5: Circuit Schematic



and Vin and Vout were displayed on an oscilloscope. A copy of the oscilloscope screen is given in Figure 6.

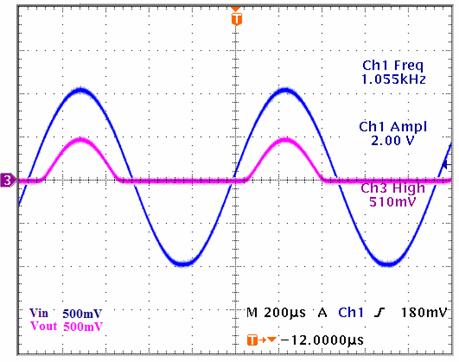

Figure 6: Oscilloscope Screen for Task 2





To compare the behavior of the actual 1N914 diode to various models, a MATLAB program was written to determine the behavior of the circuit using the ideal diode, the constant voltage drop model, and the actual diode equation.   The simulation results are shown in Figure 7, using the device parameters for the 1N914.  The input is the same 1kHz 2Vp-p used in the laboratory.  The MATLAB simulation code is included in Appendix A.

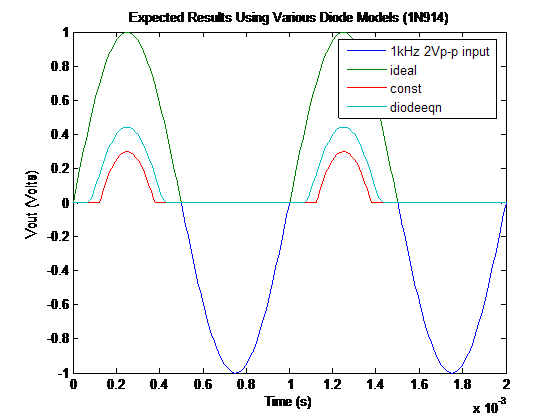

Figure 7. Simulation of various diode models.



The solution using the actual diode equation unsurprisingly seems to correspond to the laboratory results best.  The second best model is the constant voltage drop.  With this model, a better choice of voltage drop could have been chosen (i.e. ~ 0.6 V instead of 0.7V) to yield better matching between the model and actual diode behavior.



Diode Equation Solver Using a Simple Newton’s Method



The brute force iterative approach to solving the non-linear diode equation in calc_diode_dc_op.m was extremely slow and would not give reasonable results unless the accuracy threshold was made very small.  A better method for finding the zero of the circuit equation is Newton’s method.  It uses the value of the function evaluated at Vd as well as its derivative at that point to choose a better guess for Vd.  Normally this method converges quickly, but sometimes does not converge if the tangent line calculated does not intersect with 0, or a cycle develops on a symmetrical function.  The equation for obtaining the next guess for Vd is given below.

The function f and its derivative are given below.

Our MATLAB implementation stops if convergence is not reached after 30 iterations.  It also quits if the next guess for Vd steps outside the lower and upper bounds.  Using Newton’s method, the simulation code calculating the diode response is extraordinarily faster.  The simulation results are shown below in Figure 8. The code modifications in sim.m are given below for reference.



 %diodeeqn1(i) = input(i) - calc_diode_dc_op(input(i), Is, n, R);

   diodeeqn1(i) = input(i) - newton(-2, 2, 0.00001, input(i), R, Is, n);

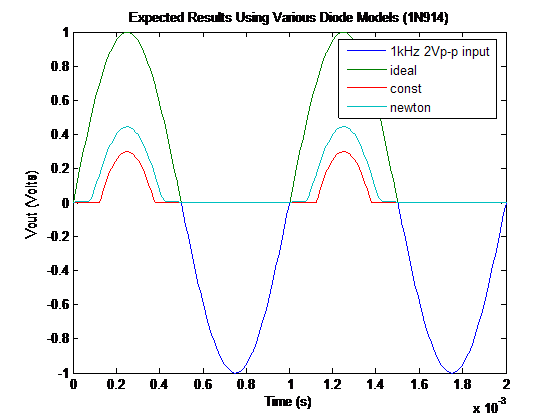

Figure 8. Simulation results using a simple Newton’s method solver



A more robust solver could be developed that has better convergence properties, but this simple method appeared to work acceptably for the simple circuit under analysis.



Using Newton’s method, the diode voltages of the 1N4001 and 1N914 with Vin=2V are given below.



For the 1N4001:

newton(.5, .9, 0.00001, 2, 993, 1.59e-9, 1.718)

    0.5886



For the 1N914:



newton(.5, .9, 0.00001, 2, 993, 3.33e-10, 1.676)

    0.6382



These results compare favorably to the diode voltages obtained in Task 1(See Calculating diode for V1 = 2 Volts).





Appendix A: MATLAB Code



Matlab program for calculating diode for V1 = 2 Volts



% e77 lab 1

% F(Vdiode) method



R=993;          %measured resistance

Is1=1.59e-9;    %saturation current for 1n4001

Is2=3.33e-10;   %saturation current for 1n914

n1=1.718;       %emission coefficient for 1n4001

n2= 1.676;      %emission coefficient for 1n914

Vin=2;          %input voltage

Vt=0.025;       %thermal voltage

DT=.000001;     %step size

Vd=-1:DT:1;     %array for diode voltage



fvd1 = (Vin-Vd)./R - Is1*(exp(Vd./(n1*Vt))-1);

fvd2 = (Vin-Vd)./R - Is2*(exp(Vd./(n2*Vt))-1);



for i=1:length(Vd),

     if ( fvd1(i) > -.000001 & fvd1(i) < .000001 )

            ans1 = Vd(i);

         end



        if ( fvd2(i) > -.000001 & fvd2(i) < .000001 )

            ans2 = Vd(i);

        end

end



answer1=ans1

answer2=ans2



plot(Vd, fvd1, 'r', Vd, fvd2, 'g');

axis([-1 1 -2.2e-3 3.2e-3]);

grid on

title('Solving for Diode Voltage');

xlabel('Vd (volts)');





Matlab program for simulating various diode models



%% e77 lab 1

%% ideal diode

%% constant voltage drop (0.7V)

%% diode equation



t = 0:1e-5:2e-3;



R = 993;

Is = .1e-12;

n = 1;

VT=0.025;



input = sin( t .* (2*pi*1000) );

len = length(t);

ideal = zeros( len, 1 );

const = zeros( len, 1 );

diodeeqn1 = zeros( len, 1 );



for i=1:len,

    if ( input(i) < 0 )

        ideal(i) = 0;

    else

        ideal(i) = input(i);

    end



    if (input(i)-0.7 < 0)

        const(i) = 0;

    else

        const(i) = input(i)-0.7;

    end



    diodeeqn1(i) = input(i) - calc_diode_dc_op(input(i), Is, n, R);

end





plot(t,input, t, ideal, t,const, t, diodeeqn1 )

legend('1kHz 2Vp-p input', 'ideal', 'const', 'diodeeqn');

title('Expected Results Using Various Diode Models (1N914)');

xlabel('Time (s)');

ylabel('Vout (Volts)');

print -dbitmap 'sim.bmp'



MATLAB Code for calculating the DC operating point of a diode (slow iterative method)



function [vd] = calc_diode_dc_op(Vin, Is, n, R)



err = 1;

accuracy = 0.000001;

step = 0.000005;



vd = 0.6;

while abs(err) > accuracy,

    Id1 = Is*(exp(vd/(n*0.025))-1);

    Id2 = (Vin - vd)/R;

    err = Id1 - Id2;



    if (err > 0)

        vd = vd-step;

    elseif (err < 0)

        vd = vd+step;

    end

end



MATLAB Code for DC-OP using a simple version of Newton’s Method



function [Vd] = newton(Vd1, Vd2, threshold, Vin, R, Is, n)

% newton's method for diode dc op



% Vd1,Vd2: lower and upper bounds for Vd

% threshold: accuracy of Vd result

% Vin: input voltage

% R: resistance

% Is, n: diode parameters



max_iter = 30;    % maximum number of iterations

Vd = (Vd1+Vd2)/2; % start with the midpoint of the bounds

VT = 0.025;       % thermal voltage



for i=1:max_iter,

    f = (Vin-Vd)/R - Is*(exp(Vd/(n*VT))-1); % calculate f

    df = -1/R - Is/(n*VT)*exp(Vd/(n*VT)); % calculate df

    dx = f/df;

    Vd = Vd - dx; % x1 = x - f(x)/df(x)



    if (Vd < Vd1 | Vd > Vd2)

        disp('newton: exceeded bounds');

        return;

    end



    % if change from previous Vd value was smaller than

    % the accuracy threshold, we're done, so return.

    if (abs(dx) < threshold)

        return;

    end

end



disp('newton: failed to converge in 30 iterations');
